Quote request: Extension springs

[TEL] Shizuoka factory：+81-55-987-4111

[FAX] Shizuoka factory：+81-55-987-4119

[Email address] tohatsutohatsu-springs.com

*Required.

Name of company*

Address*

Section

Person responsible

Phone*

Fax number

E-mail address*

Confirm E-mail address*

Material

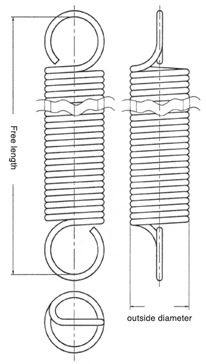

Wire diameter	mm
Outside diameter	mm
Free length	mm
Total coils	coils
Winding	Right Left
Spring Constant	N/mm kg/mm
Initial tension	N/mm kg/mm
Specified 1	Installed length mm
	Set load　 N kg
Specified 2	Installed length　 mm
	Set load　 N kg
Anti-rust processing

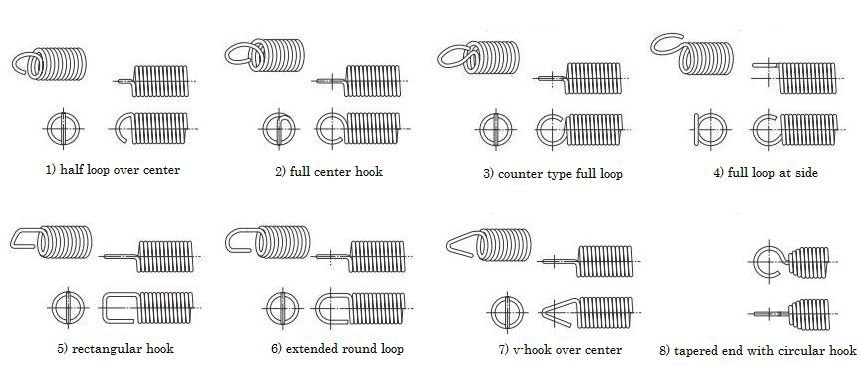

Hook shape	1) half loop over center 2) full center hook 3) counter type full loop 4) full loop at side 5) rectangular hook 6) extended round loop 7) v-hook over center 8）tapered end with circular hook *Click to zoom
Operating temperature	Under normal temperature Over normal temperature ℃
Estimate the number of times	times
Estimate quantity	quantity
Delivery time

　

The other special notes
